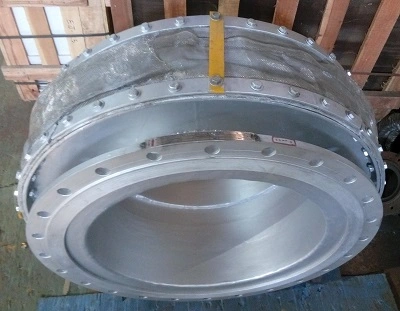

Fabric Expansion Joints
Fabric expansion joints are flexible, corrosion-resistant connectors ideal for high-temperature gas ducts and industrial ventilation systems.
Lightweight, Multi-Layer Joints for Gas and Duct Systems
Fabric expansion joints are specially designed for low-pressure, high-temperature gas ducts where metallic joints are not feasible. Constructed from multiple layers of heat- and chemical-resistant fabrics, these joints provide flexibility, vibration absorption, and movement compensation in systems handling hot air, flue gas, or corrosive fumes.
Key Features
Accommodates axial, lateral, and angular movements
Withstands high temperatures up to 1200°C
Excellent corrosion and chemical resistance
Lightweight and easy to install or replace
Custom-built to suit rectangular or circular duct shapes
Technical Specifications
| Parameter | Specification |
|---|---|
| Movement Type | Axial, Lateral, Angular |
| Shape | Rectangular, Circular |
| Temperature Range | Up to 1200°C (depending on fabric layers) |
| Pressure Rating | Up to 0.5 bar (low-pressure applications) |
| Material Options | PTFE, Silica, Glass Fiber, Kevlar, etc. |
| Liner Options | Stainless Steel, Acid-Resistant Alloys |
| Frame Options | Galvanized / Painted Steel / SS |
| Standards | EJMA, DIN, ISO, Custom Specs |
Application Industries
Power plants (flue gas and air ducts)
Cement and steel industries
Exhaust systems in refineries
Pulp & paper processing units
Waste heat recovery systems
