Gimbal Expansion Joints

Gimbal expansion joints provide angular movement in multiple planes while restraining pressure thrust—perfect for high-performance systems with 3D flexibility requirements.

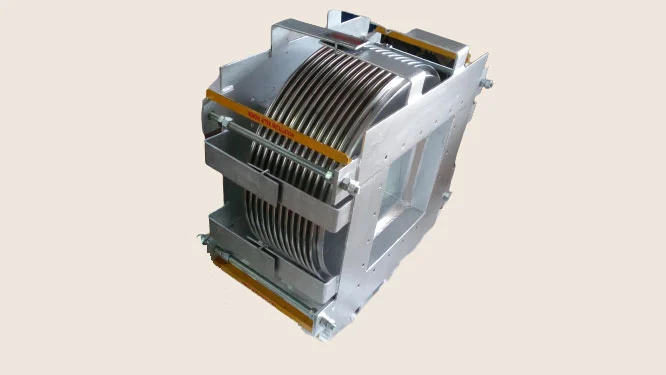

Gimbal-Expansion-Joint
Get a Quote

Multi-Plane Angular Flexibility with Pressure Thrust Restraint

Gimbal expansion joints are designed to absorb angular movement in multiple planes using a specialized gimbal structure. These joints are equipped with gimbal rings and hinge mechanisms that contain pressure thrust forces, allowing them to manage complex thermal movement without overloading adjacent pipe supports or equipment.

  • Handles angular deflection in multiple directions

  • Effectively restrains pressure thrust using gimbal structure

  • Ideal for three-dimensional piping systems

  • Reduces stress on equipment and anchor points

  • Custom-built to match pressure, movement, and temperature needs

ParameterSpecification
Movement TypeAngular (Multi-Plane)
Size RangeDN 50 to DN 1500+
Pressure RatingUp to 40 bar or custom
Temperature Range-100°C to 800°C
Material OptionsSS 304, SS 316, Inconel, Hastelloy
End ConnectionsFlanged or Welded
Design StandardsEJMA, ASME, DIN

  • Steam lines and high-temperature pipelines

  • Power plants and boiler systems

  • Oil & gas transmission networks

  • Industrial ducts with complex layout requirements

  • Piping systems with limited anchor support
